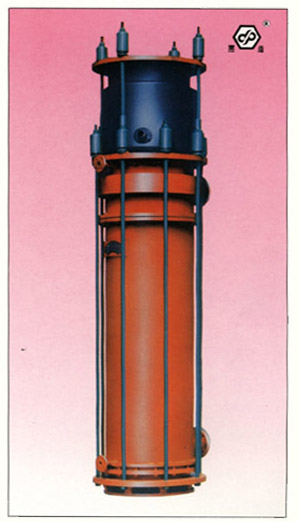

YKCH type round cellular type graphite sulfuric acid dilution cooling uint
Production introduction:YKCH type round cellular type graphite sulfuric acid dilution cooling uint
|
Modle |
M2 |

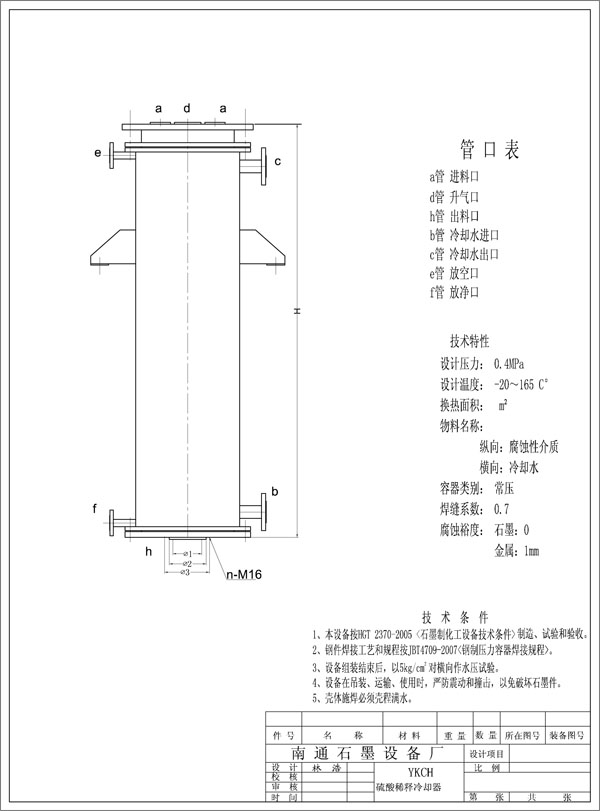

The installation size and nozzle |
||||||||||||
|
Dg |
K |
H |
a |
b |
c |
d |
e |
f |
ø1 |
ø2 |
ø3 |
n |
||
|
YKC30 |
5 |
300 |
6 |
1930 |
32 |
80 |
80 |
50 |
25 |
25 |
100 |
150 |
180 |
8 |
|
YKCH40 |
10 |
400 |
3.5 |
2080 |
40 |
100 |
100 |
65 |
|
|
125 |
180 |
210 |
|
|
|
15 |
400 |
4.5 |
2480 |
|
|
|
|
|
|
|
|
|
|
|
|
20 |
400 |
6 |
2880 |
|
|
|
|
|
|
|
|
|
|
|
YKCH50 |
20 |
500 |
4 |
2360 |
50 |
|
|
80 |
|
|
200 |
250 |
295 |
|
|
|
25 |
500 |
5 |
2760 |
|
|
|
|
|
|
|
|
|
|
|
|
30 |
500 |
6 |
3160 |
|
|
|
|
|
|
|
|
|
|
